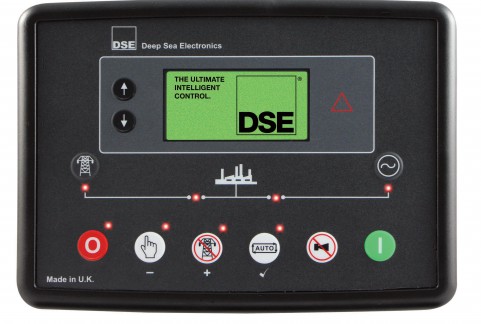

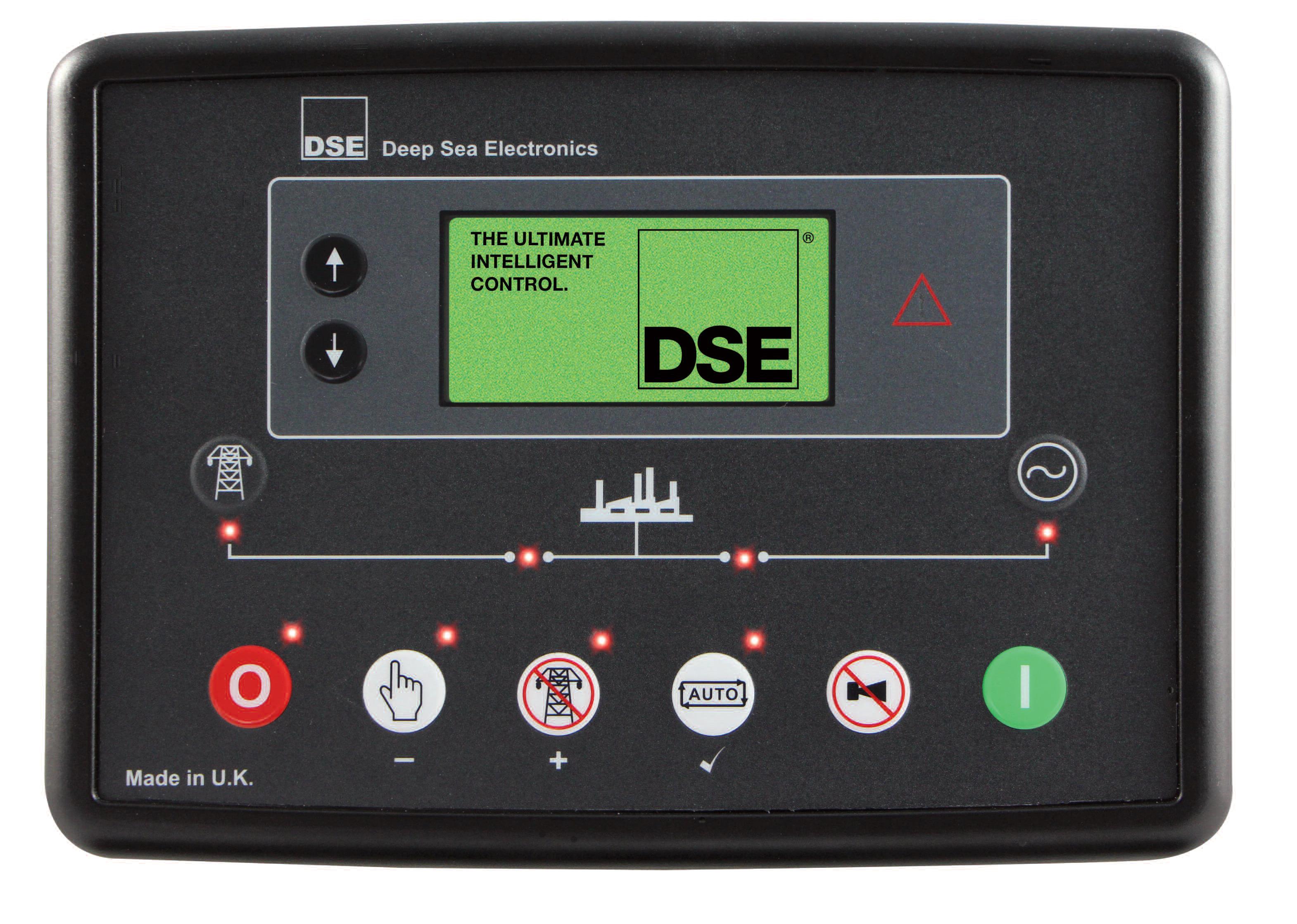

DEEPSEA 6020
DSE 6020
The Control Module DSE6020 are suitable for a wide variety of single gen-set
applications. Monitoring engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level, the modules give comprehensive engine and alternator protection. This is indicated on a large back-lit LCD icon display via an array of warning, electrical trip and shutdown alarms.

KEY BENEFITS
• Automatically transfers between
mains (utility) and generator
(DSE6020 only)
• Hours counter provides accurate
information for monitoring and
maintenance periods
• Multiple parameters are
monitored simultaneously which
are clearly displayed on a large
back-lit icon display
• The module can be configured
to suit a wide range of
applications
• Compatible with a wide range
of CAN engines, including tier 4
engine support
• Uses DSE Configuration Suite
PC Software for simplified
configuration
• Licence-free PC software
• IP65 rating (with optional
gasket) offers increased
resistance to water ingress

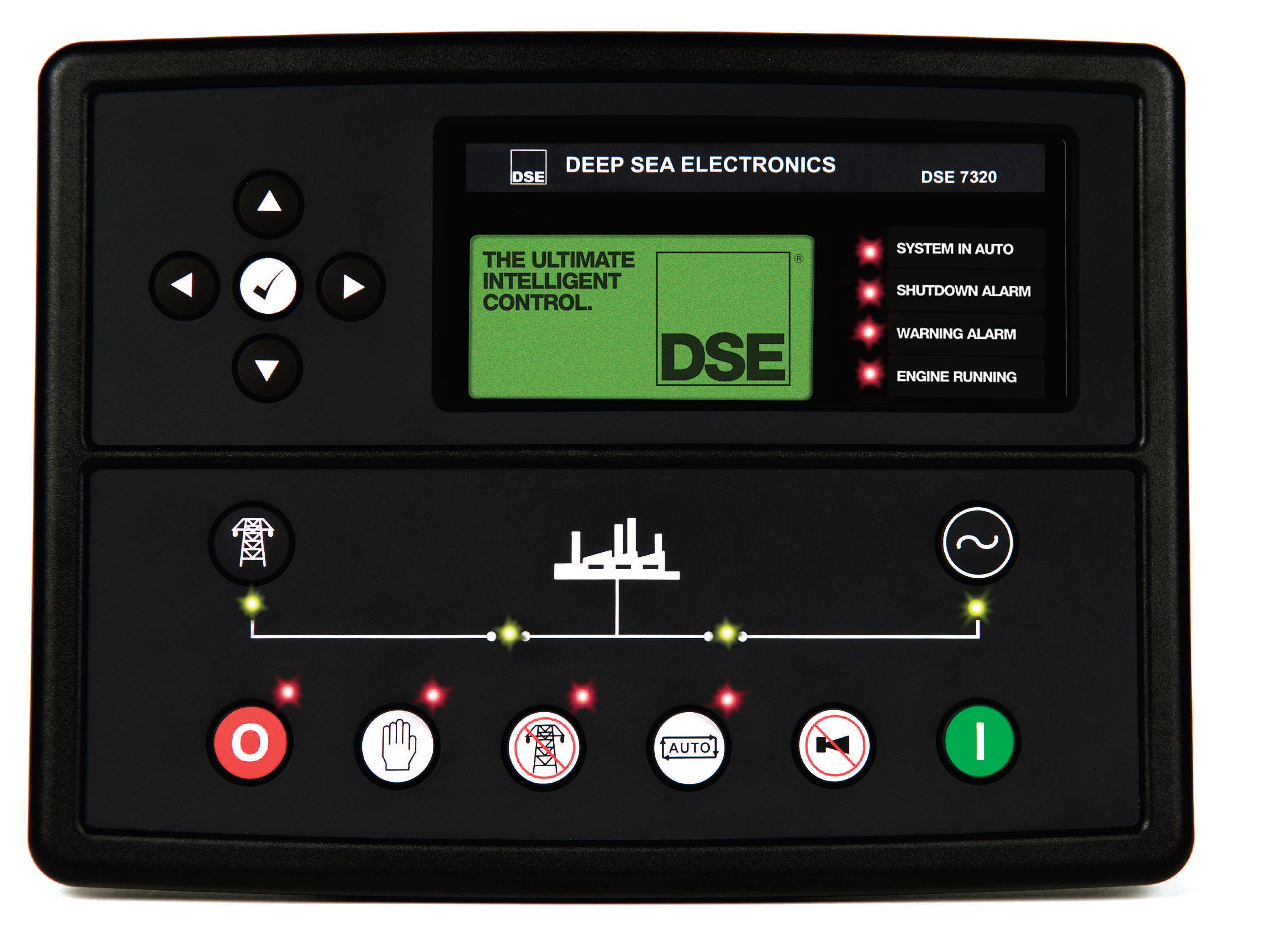

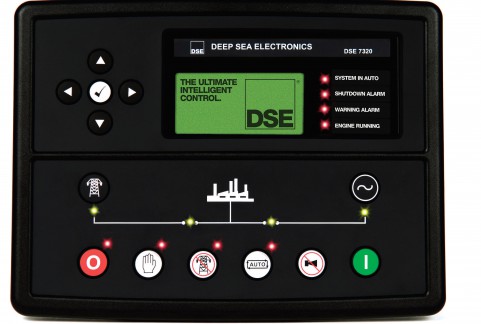

DEEPSEA 7320
DSE 7320
The DSE7320 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem).

KEY FEATURES
• 4-Line back-lit LCD text display
• Five key menu navigation
• Customisable status screens
• Power save mode
• Support for up to three remote
display units
• Flexible sender inputs
• Configurable timers and alarms
• 3 configurable maintenance
alarms
• Multiple date and time schedule
• Configurable event log (250)
• Integral PLC editor
• Easy access diagnostic page
• Fuel usage monitor and low fuel
alarms
• Charge alternator failure alarm
• Manual speed control (on
compatible CAN engines)
• Manual fuel pump control
• Engine exerciser
• “Protections disabled” feature
• kW & kV Ar protection

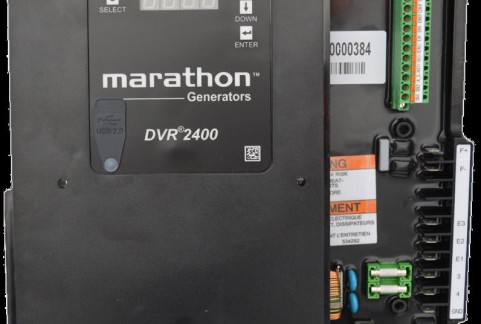

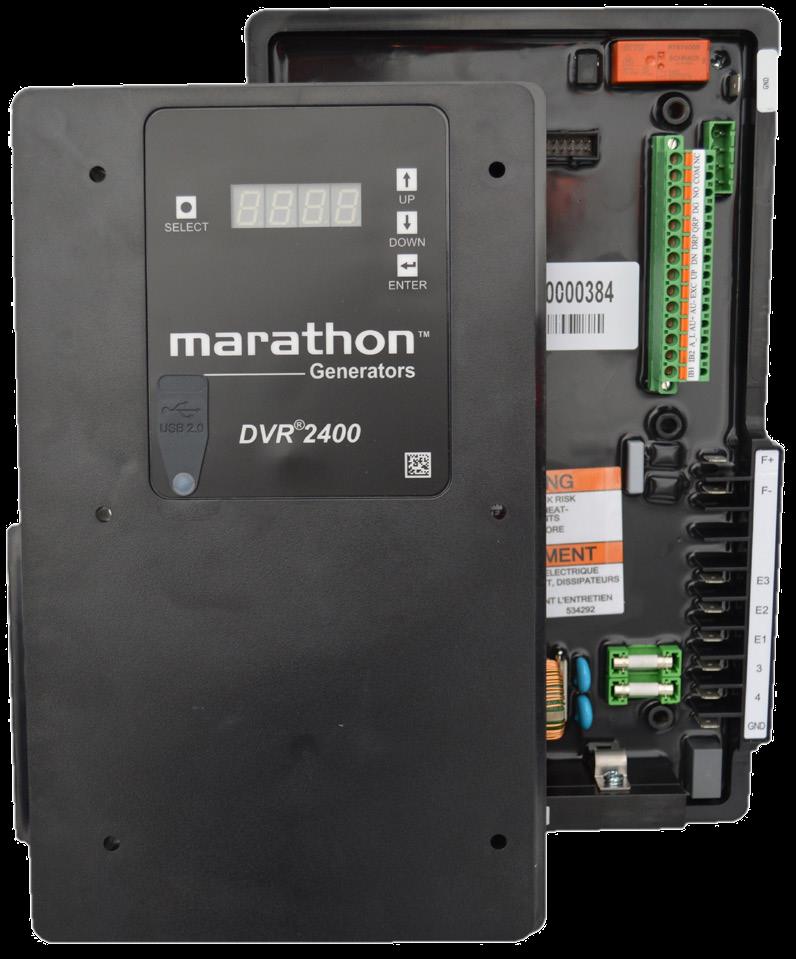

DVR 2400
DVR2400
NEW FEATURES
• USB 2.0 access through front panel
• Euro style connector for low voltage connections
• Event Logging
• PMG voltage metering
• Polarity configuration for external inputs
• Configurable cut-in and cut-out frequencies
• Retain/reset configuration of remote adjust

SPECIFICATIONS
Voltage Regulation – 0.25% over load range at rated power factor and constant generator frequency.
Output Power – 100 Vdc, 4.0 Adc continuous rating and 190 Vdc, 7.5 Adc forcing capability for one minute.
Exciter Field DC Resistance – 18 to 25Ω Range
Remote Voltage Adjustment – +30% of nominal via analog input, +15% via external contacts.
Input Power – 180 to 240 Vac, 250 to 300 Hz PMG power supply

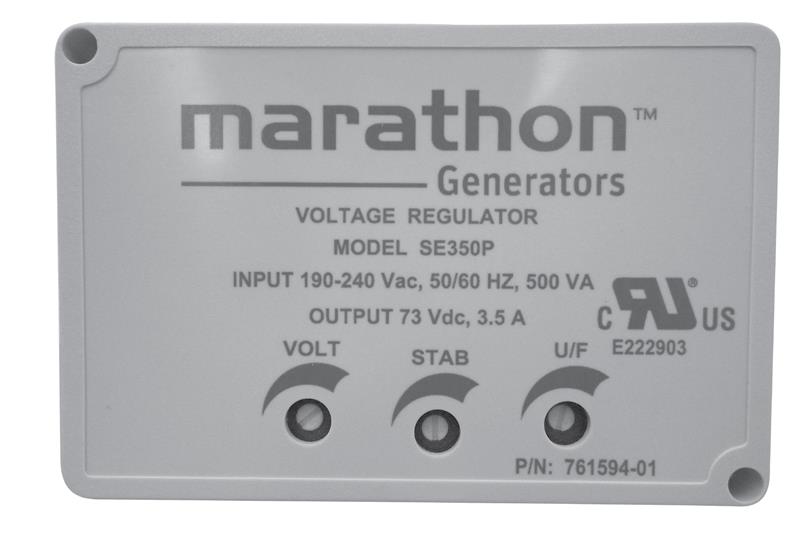

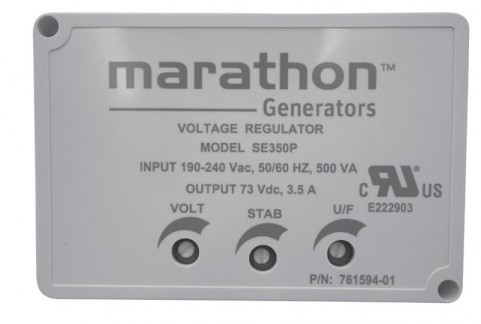

SE 350
SE350
NEW FEATURES
The SE350E voltage regulator is an encapsulated electronic
voltage regulator which controls the output of a brushless AC
generator by regulating the current into the exciter field.

SPECIFICATIONS
Sensing (Average) & Power – Input 190-240 Vac
Burden – 500 VA
Output Power – Continuous – 73 Vdc at 3.5 Adc
(255w)
Output Power – Forcing 105 – Vdc at 5 Adc (525w)
(240 Vac Input Power)
Regulation – 1.0%
Exciter Field Resistance – 15 ohms minimum
Remote Voltage – ±10% with 2000 ohm rheostat
Adjustment Range – ±5% with 1000 ohm rheostat

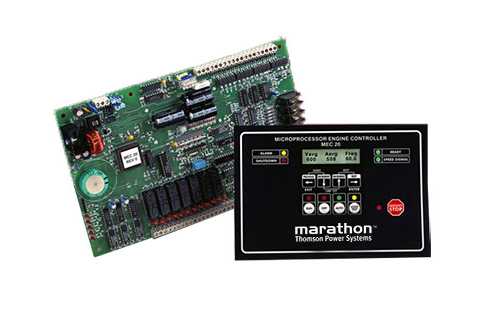

MEC 20
MEC-20
– ควบคุมการทำงานด้วยไมโครโปรเซสเซอร์ ความแม่นยำสูง
– จอ LED แสดงผลทั้งตัวเลขและตัวหนังสือ
– ใช้ได้ทั้งระบบไฟฟ้า แบบ 3 เฟส และ 1 เฟส
– ระบบตัดดับและสัญญาณเตือนสำหรับความผิดปรกติของเครื่องกำเนิดไฟฟ้า 28 ชนิด ตามมาตรฐาน NFPA 110 LEVEL 1 และ CSA C282
– สามารถตั้งค่าฟังก์ชันต่างๆในระบบเตือนและติดดับทั้งหมดโดยใช้ปุ่มกดที่ชุดควบคุมได้โดยตรง โดยไม่ต้องใช้คอมพิวเตอร์ในการตั้งค่า
– มีฟังก์ชันควบคุมชุด ATS
– หลอดไฟ LED ภายในชุดควบคุม ซึ่งจะติดเมื่อชุดควบคุมทำงานในขั้นตอนต่างๆ 5 ขั้นตอน เพื่อใช้วิเคราะห์ปัญหาเบื้องต้นที่เกิดขึ้นกับระบบควบคุมได้
– รองรับการควบคุมระยะไกลโดยเพิ่มอุปกรณ์เสริม (CIM)
– ได้มาตรฐาน UL508 และ CSA22.2#14

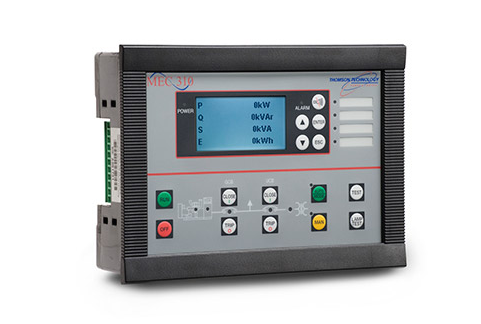

MEC 310
MEC-310-m4y8eaf0w78leup5j2vut6f45sananx9huxs98ni08
– ควบคุมการทำงานด้วยไมโครโปรเซสเซอร์ ความแม่นยำสูง
– จอแสดงผลแบบ SUPER TWISTED NEMATIC 4 บรรทัด
– ใช้ได้กับระบบไฟฟ้าทั้งแบบ 3 และ 1 เฟส
– รองรับ CAN BUS J1939, RS 232,RS 485
– ระบบตัดดับ ระบบเตือน ตามมาตรฐาน NFPA 110 LEVEL 1&2, NFPA 99 และ CSA C282
– มีหน่วยบันทึกความจำ (EVENT LOG)
– แสดงค่า KW, KVAR, KVA, KWHR และ POWER FACTOR
– สามารถเพิ่มฟังก์ชัน AMF ได้
– ระบบป้องกันทางไฟฟ้า ได้แก่ OVER/UNDER VOLTAGE, OVER/UNDER FREQUENCY, REVERSE POWER, OVERCURRENT
– ได้มาตรฐาน UL 508 และ CSA 22.2#14
